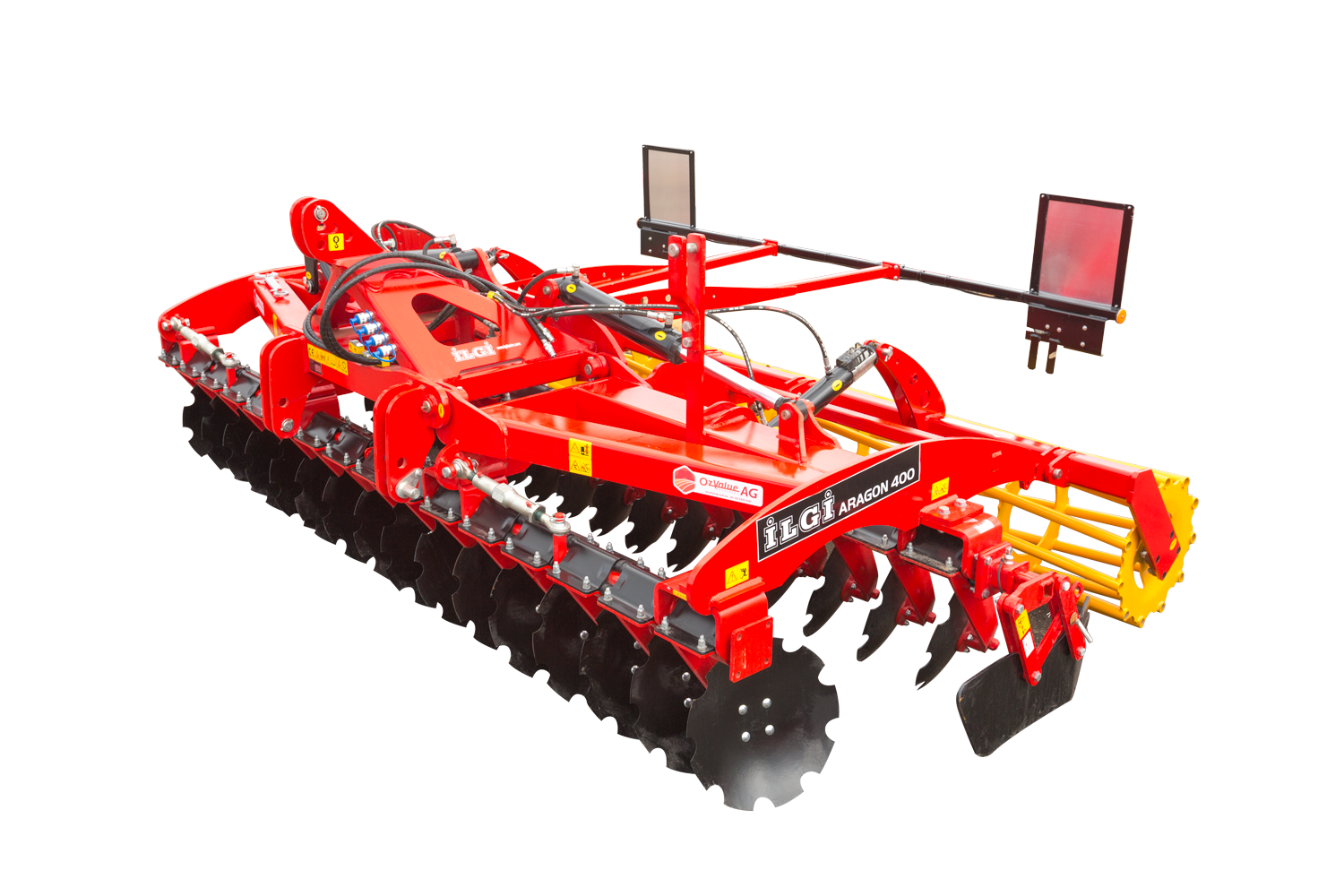

Aragon 3-Point Hitch Folding

The ILGI Aragon 3-Point Hitch Folding is a multi-purpose tillage tool, capable of tasks from light soil tillage and stubble preparation, through to complete primary cultivation. The Aragon’s rugged design and large range of sizes, provide machines suitable for tractors from 140hp through to 250hp.

With an optimum disc angle, the Aragon is able to work at speeds as high as 15kph. This feature alone results in much more ground being cultivated in a shorter period of time and using less fuel, making your machine more cost effective.

The Aragon series is equipped from standard with an edge plate, designed to eliminate ridges and provide a consistent pass to pass seed bed.  An adjustable disc offset enables the Aragon to make a full clean cut below the surface regardless of soil type and conditions, plus hydraulic depth adjustment, allowing the operator to make adjustments from within the tractor cabin.

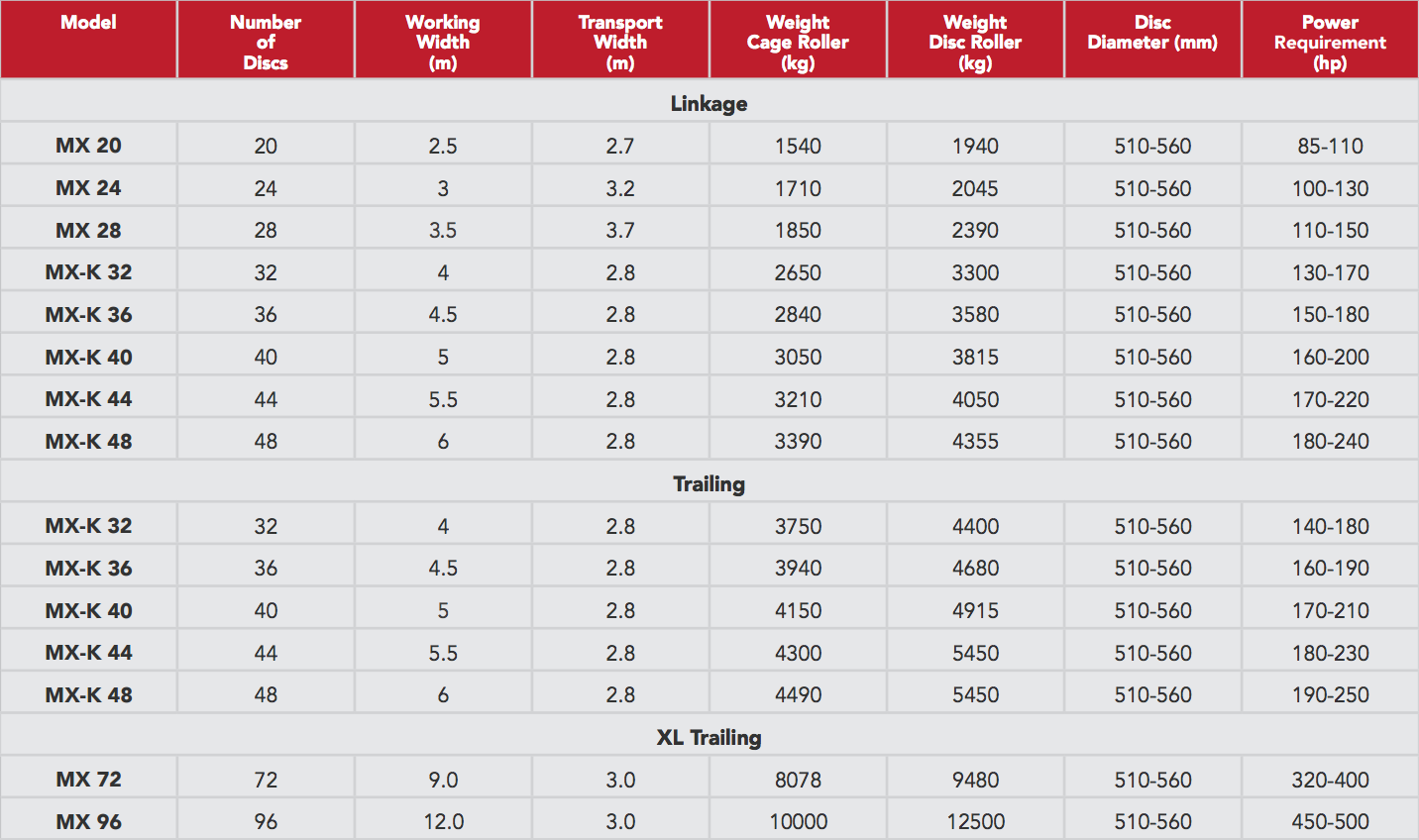

Aragon MX-K32-400

Linkage (Mount) Folding Disc Tiller

Number of Discs: 32
Working Width: 4000mm
Transport Width: 2800mm
Weight: Gross2130kg
Weight: Cage Roller2650kg
Weight: Helix Roller2835kg
Weight: Disc Roller3300kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement:130-170hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $31,041 CAD*



Aragon MX-K36-450

Linkage (Mount) Disc Tiller

Number of Discs: 36
Working Width:  4500mm
Transport Width:  2800mm
Weight: Gross2290kg
Weight: Cage Roller2840kg
Weight: Helix Roller3060kg
Weight: Disc Roller3580kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement: 150-180hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $33,595 CAD*



Aragon MX-K40-500

Linkage (Mount) Disc Tiller

Number of Discs: 40
Working Width: 5000mm
Transport Width: 2800mm
Weight: Gross2410kg
Weight: Cage Roller3050kg
Weight: Helix Roller3245kg
Weight: Disc Roller3815kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement:  160-200hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $36,317*


Aragon MX-K44-550

Linkage (Mount) Disc Tiller

Number of Discs: 44
Working Width:  5500mm
Transport Width:  2800mm
Weight: Gross2540kg
Weight: Cage Roller3210kg
Weight: Helix Roller3430kg
Weight: Disc Roller 4050kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement: 170-220hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $38,753*


Aragon MX-K48-600

Linkage (Mount) Disc Tiller

Number of Discs: 48
Working Width: 6000mm
Transport Width: 2800mm
Weight: Gross2680kg
Weight: Cage Roller3390kg
Weight: Helix Roller3645kg
Weight: Disc Roller4355kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement: 180-240hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $41,142 CAD*
