Aragon 3-Point Hitch

The ILGI Aragon is a multi-purpose tillage tool, capable of tasks from light soil tillage and stubble preparation, through to complete primary cultivation. The Aragon’s rugged design and large range of sizes, provide machines suitable for tractors from 85hp through to 150hp.

With an optimum disc angle, the Aragon is able to work at speeds as high as 15kph. This feature alone results in much more ground being cultivated in a shorter period of time and using less fuel, making your machine more cost effective.

The Aragon series is equipped from standard with an edge plate, designed to eliminate ridges and provide a consistent pass to pass seed bed.  An adjustable disc offset enables the Aragon to make a full clean cut below the surface regardless of soil type and conditions, plus hydraulic depth adjustment, allowing the operator to make adjustments from within the tractor cabin.

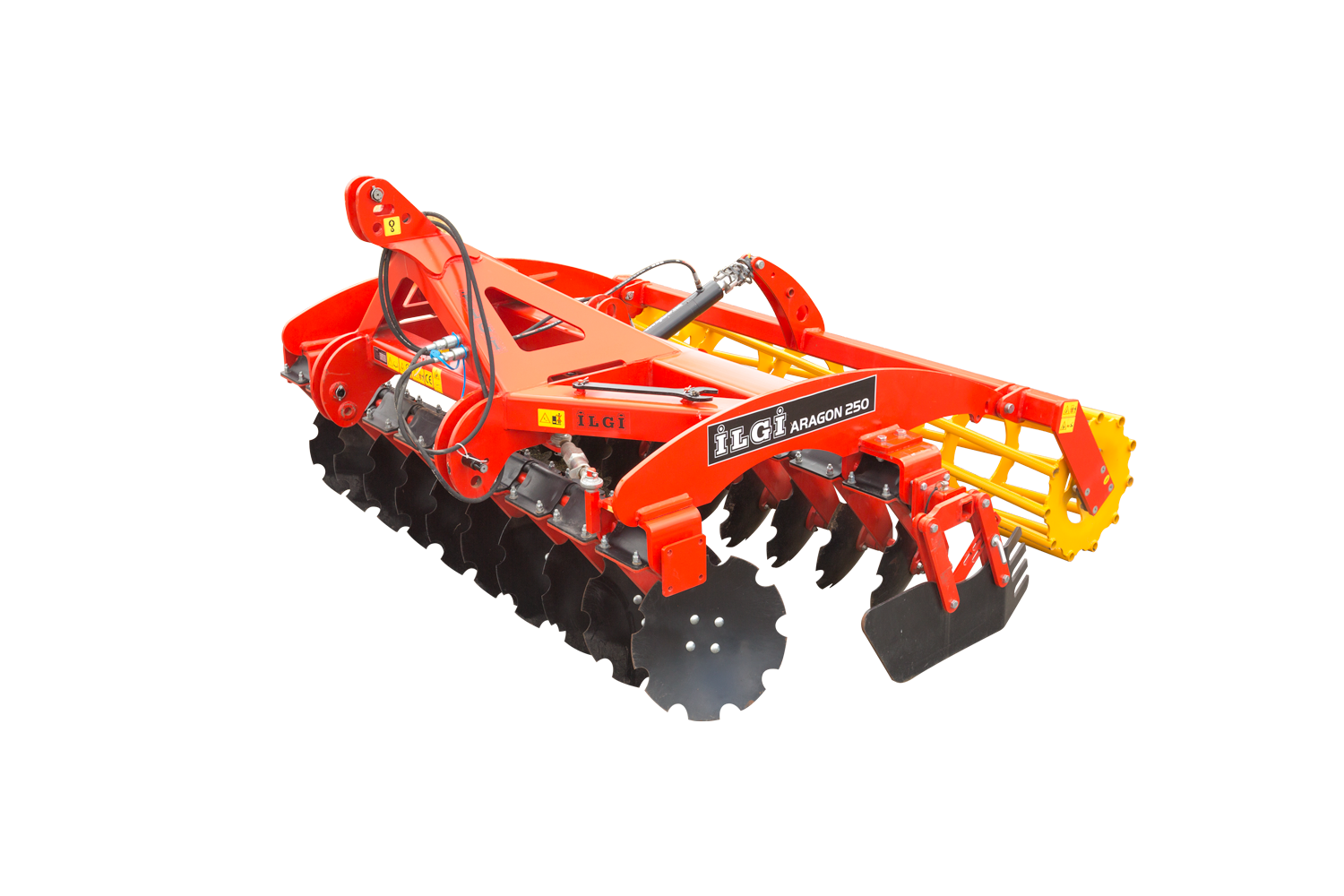

Aragon MX20-250

Linkage (Mount) Disc Tiller
with Cage Roller

Number of Discs: 20
Working Width: 2500mm
Transport Width: 2700mm
Weight: Gross 1220kg
Weight: Cage Roller 1540kg
Weight: Helix Roller 1640kg
Weight: Disc Roller 1940kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement – 85-110hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $17,579 CAD*


Aragon MX28-350 (pictured right)

Linkage (Mount) Disc Tiller
with Cage Roller

Number of Discs: 28
Working Width: 3500mm
Transport Width: 3700mm
Weight: Gross1470kg
Weight: Cage Roller1850kg
Weight: Helix Roller2020kg
Weight: Disc Roller2390kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement: 110-150hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $22,341 CAD*

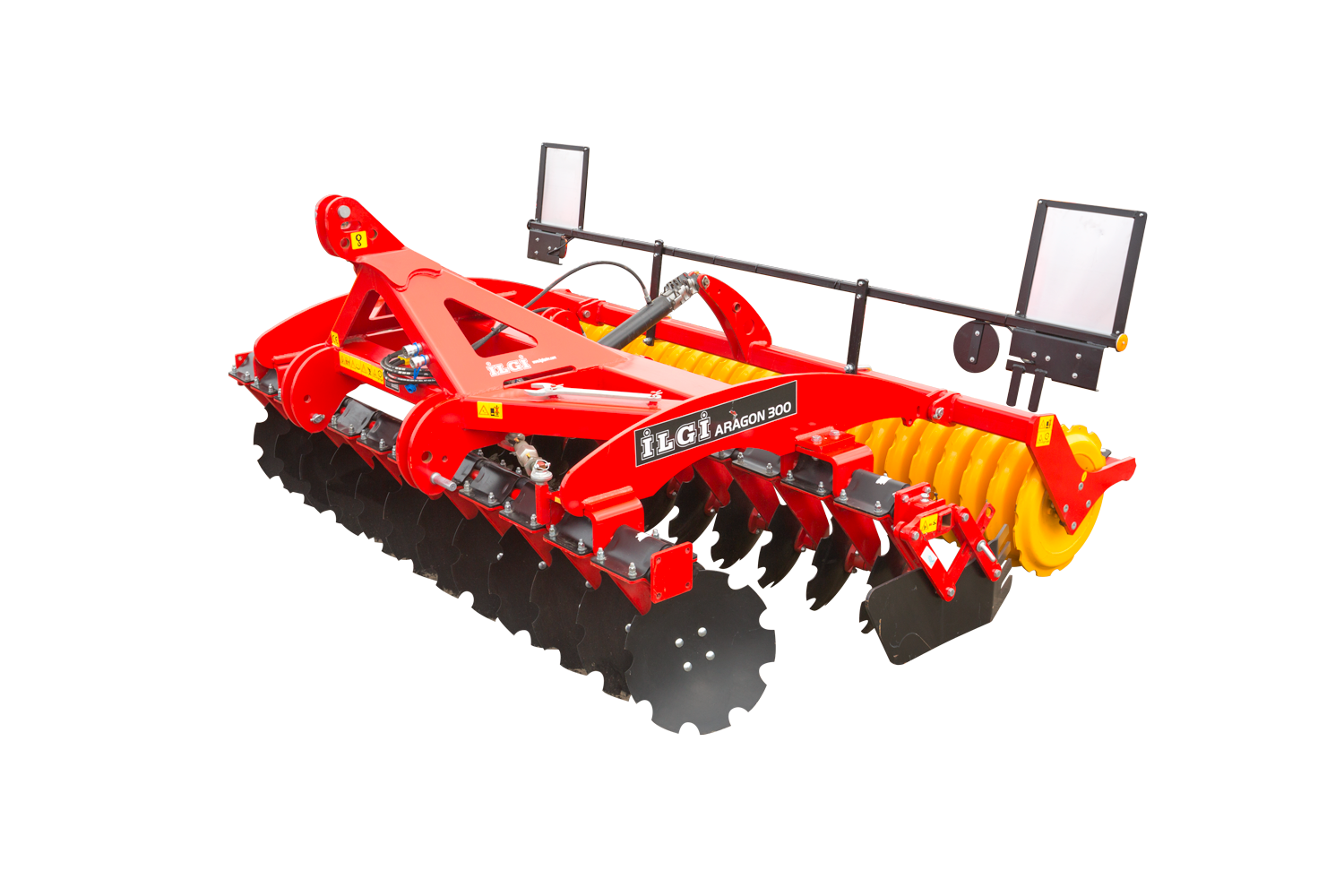

Aragon MX24-300

Linkage (Mount) Disc Tiller
with Cage Roller

Number of Discs: 24
Working Width:  3000mm
Transport Width:  3200mm
Weight: Gross1350kg
Weight: Cage Roller1710kg
Weight: Helix Roller1830kg
Weight: Disc Roller 2045kg
Disc Diameter: 510mm (opt. 560mm)
Power Requirement:  100-130hp

Edge Plate to eliminate ridges
Adjustable offset slide mechanism
Hydraulic depth adjustment

*Starting from $19,865 CAD*
